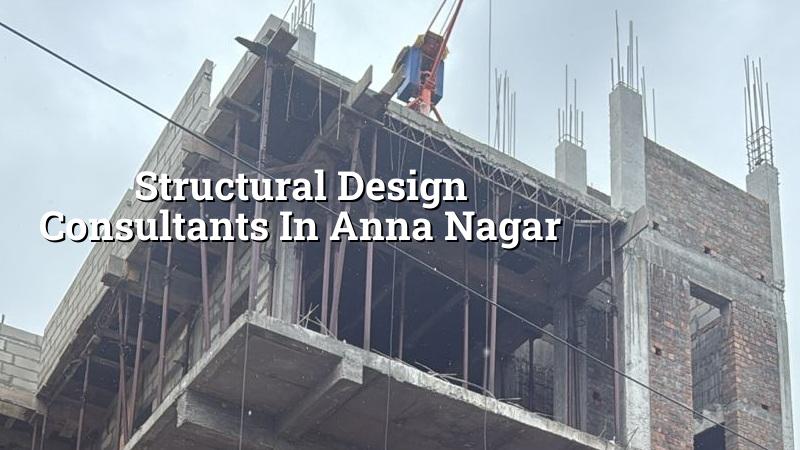

Structural Design Consultants in Anna Nagar

If you’re planning a new house, second floor, or redevelopment in Anna Nagar, the structural design has to be right before the first column is cast. That means soil study, load calculation, slab spans, beam sizes, and a drawing set that can actually be built on site.

We handle the engineering side from concept to stability certificate, with in-house civil engineers, a structural engineer and an architect. You get the calculations, the drawings, and the practical checks that stop the common mistakes: weak foundations, awkward column positions, and changes made too late.

What Anna Nagar plots demand

Anna Nagar is planned, with wider roads and more regular plots than many older central areas. That sounds easy on paper, but the real job is matching the structure to the plot shape, road access, and the building type you want. A straight column grid helps, yet it still has to respect setbacks, staircase location, parking, and future vertical loading if you may add a floor later.

The soil question is never a guess. We look at the soil investigation first, then decide whether isolated footings, strip footings, raft, or pile-supported foundation is the sensible choice for that plot. A firm profile can support a simpler foundation. Soft or variable layers need a different answer, and you do not find that out by looking at the street.

Because this part of Chennai sits under CMDA planning control, the drawings also need to fit the approval route. The building licence may come through the Greater Chennai Corporation if the plot is inside city limits, or through the relevant local body if it is on the outer side. That paperwork only moves smoothly when the structural set, architectural set, and drainage details are aligned from the start.

What we design and check

For structural design consultants in Anna Nagar, the work is not just a beam schedule. We design the RCC system to IS 456:2000, apply load assumptions under IS 875, and check seismic action as per IS 1893:2016. Chennai is Seismic Zone III, so earthquake forces cannot be treated like a side note. NBC 2016 also matters for the way the building is organised and documented.

The parts that need judgment

Most clients ask for a “strong structure” as if that were one setting. It isn’t. Strength sits in the whole system: foundation type, column layout, beam depth, slab span, stair configuration, and how the load travels to the soil. If one of those pieces is changed casually, the rest of the design can become inefficient or risky.

We also watch for things that are not obvious on a drawing sheet. Water tank position changes load concentration. Open parking at ground level affects column spacing. A future loft or terrace room needs planning now, not after the slab is cast. In a city like Chennai, rainwater harvesting details are part of the design, not an optional decoration, because Tamil Nadu has required it since 2003.

1. Site visit and brief — We look at the plot, road access, neighbour walls, and what you want to build. This usually takes one working visit, sometimes more if the site is still being cleared.
2. Soil investigation and concept — The test comes before foundation design. We use it to choose the right footing type and to avoid guesswork.
3. Structural analysis — Our engineer models the building, checks the load paths, and fixes the column and beam sizes. This stage normally takes a few days for a simple house and longer for a larger or more complex building.
4. Drawing issue and coordination — We release the structural drawings, coordinate with the architect, and align them with the approval set so the site team does not get two different answers.
5. Site inspection during execution — The site engineer checks steel placement, cover blocks, shuttering, and slab readiness before concreting. This is where many avoidable errors are caught.

How to verify a structural consultant

If you are comparing firms, ask for the documents before you ask for a price. A serious consultant will be able to show the calculation basis, the drawing list, and the way changes are handled after the first issue. If those things are vague, the project usually becomes vague too.

• Ask for the design basis: which codes are being used, and who is checking the calculations.
• See whether soil testing is included before foundation design, not after excavation starts.
• Check that the drawing set includes foundation, column layout, beam layout, slab details, staircase details, and reinforcement notes.
• Ask how revisions are controlled when the architect changes a wall, opening, or staircase after design freeze.
• Read the contract for scope, payment stages, deliverables, and site inspection visits.
• Make sure a stability certificate is issued only for the design and work actually done, not as a casual letter.

Costs, approvals and what moves the fee

Structural design is not priced like paint or tiles. The fee depends on building size, number of floors, span lengths, soil condition, complexity of the plan, and how many coordination rounds are needed with the architect and approval drawings. What looks like a small change, such as moving a stair or opening up a living room, can change the load path and alter the design.

For the construction part itself, the rate depends on the full scope. Standard residential construction is typically ₹1,900 to ₹2,300 per sq ft, mid-premium is ₹2,300 to ₹2,800 per sq ft, and premium residential goes higher. Those figures move with soil and foundation type, finish level, number of floors, span, and site access. A detailed BOQ settles the real figure before any contract is signed.

On approvals, the documents usually include patta, encumbrance certificate, FMB sketch, approved architectural drawings, structural stability certificate and drainage details. If the plot is near the airport side, AAI height clearance may also come in. That is why we prefer to finish the structural logic early instead of forcing the approval set to chase a design that is still changing.

How we work

We keep the technical work in-house, and that matters when a wall shifts or the architect wants a last-minute opening. Mr. D. Salamon Ashok Rajan personally reviews projects, and our site engineer is on site every working day. You also get a detailed BOQ before any contract is signed, milestone-linked payment stages, and weekly photo updates on WhatsApp if you cannot visit the site. If you want to discuss a plot in Anna Nagar, call +91 97107 13838 or write to info@shalomconstruction.com.

Frequently Asked Questions

We design buildings so the site team can actually build them, not admire them from a drawing file. If you have a plot in Anna Nagar or an existing house that needs a structural check, speak to us before concrete starts moving.
