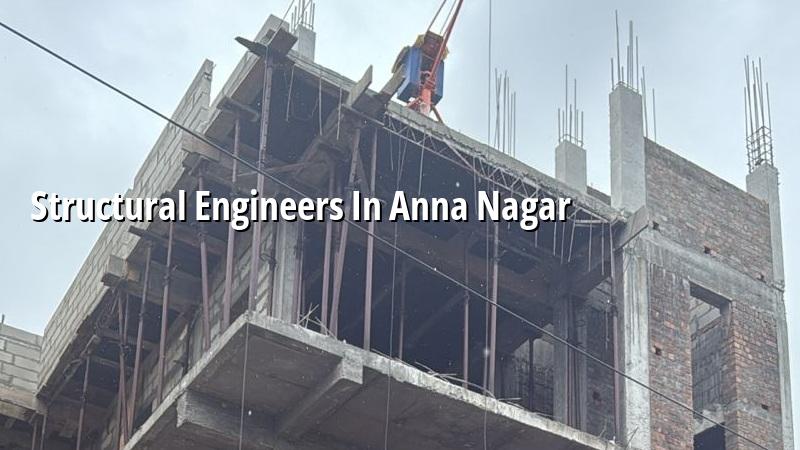

Structural Engineers in Anna Nagar

If you’re checking cracks, planning a first-floor addition, or asking the lender for structural proof, structural engineers in Anna Nagar need to answer one thing first: is the building sound, and what exactly has to change if it isn’t?

We work on that question with drawings, site inspection, analysis and plain advice. For a new house, an alteration, or a redevelopment plot in Anna Nagar, the first job is not a brochure. It’s to read the building the way it was built, then decide whether it needs strengthening, redesign, or a clean start.

Why Anna Nagar needs careful structural work

Anna Nagar looks orderly from the road, but that does not make the structure simple. You get regular plots, wider access than the older core city, and a lot of homes that have already seen one change too many: extra rooms on the terrace, altered staircases, tanks shifted after the fact, or a floor plan changed without checking load paths. A drawing can look neat and still be wrong if a column was removed in a later renovation.

The local advantage is access. A mixer truck, shuttering material and reinforcement bars can usually reach sites here better than in the old city. The local risk is a different one: people assume the plot is easy, so they skip soil investigation or over-trust an old plan copied from a neighbour. What decides the foundation is not the street name. It is the bore log, the building height, the span, the soil layers and the actual load.

In our work across Chennai, that is the point where the right decision saves money. If the soil report shows firm ground, isolated or strip footings may be enough. If it shows soft or variable layers, a raft or pile system with tie beams may be the safer route. The test is cheap compared with the cost of setting a crack twice.

What we check before we touch a drawing

For structural engineers, the first inspection is about facts you can verify on site. We look at the column grid, beam sizes, slab direction, visible cracks, signs of seepage, deflection on long spans, and whether the building has already been altered. In Anna Nagar, we also look at how the site can actually be worked: where the materials will stack, how the shuttering will move, and whether the neighbour wall leaves enough space for safe work.

We design to Indian standards, not guesswork. That means RCC design under IS 456:2000, load checks under IS 875, seismic checks under IS 1893:2016 for Chennai’s Zone III, and NBC 2016 where the building use calls for it. If the work is a new building, soil investigation comes before foundation design. If the work is renovation, we inspect the existing structure first and do not assume the old concrete is fine just because the paint is fresh.

What usually goes wrong

Most structural trouble we are called for starts with a small shortcut. A wall is removed to make a hall feel larger. A water tank is shifted without checking the slab. A loft or terrace room is added because the old structure “looked strong.” Then the cracks appear at beam ends, the door rubs at the frame, or the balcony edge starts showing corrosion stains. Once that starts, the question is no longer cosmetic. It is about load transfer and whether the existing members have any spare capacity.

1. Site inspection — we visit, measure, note cracks and alterations, and study how the building is being used now. This usually takes one visit and a working day for first notes.
2. Document review — we check available drawings, previous approvals, and what the owner can produce: patta, EC, FMB sketch, old plans or sanction copies. If papers are missing, we say what can still be verified on site.
3. Analysis and decision — we estimate loads, review member sizes and decide whether the answer is repair, strengthening, redesign or demolition and rebuild. For a typical residential case, this is usually a few working days after inspection.
4. Drawing and BOQ — we issue structural drawings and a BOQ so the work is priced before a contract is signed. If strengthening is needed, we show the sequence, not just the end result.
5. Execution checks — during site work, the engineer checks rebar placement, cover, concrete pouring, curing and any strengthening detail that must be done in a fixed order.

How to verify a structural engineer

If you are choosing between firms, do not start with promises. Start with proof. A structural engineer should be able to explain the load path in your building in plain words, show you the calculation basis, and tell you what documents will be issued before work starts. If someone will not talk about the member sizes, soil dependence or the difference between a repair and a redesign, that is a warning sign.

The fair contract is clear on scope. It says whether the work covers only analysis and drawings, or site supervision as well. It says who gets the approvals, who pays the authority fee, and what happens if the site conditions differ from the first inspection. It also says how revisions are handled. One revision is normal. Five revisions without a scope change are usually how fees disappear.

• Ask for the engineer’s registration or qualification details and the name of the person who will actually sign the drawing.
• Ask whether the design will be checked against IS 456:2000, IS 875, IS 1893:2016 and NBC 2016 where relevant.
• Ask for a BOQ before signing. A vague “structural package” is not enough.
• Ask what the recommendation changes if the soil test shows soft layers or a high water-retaining profile.
• Ask how many site visits are included and who supervises reinforcement, shuttering and concrete pour.
• Ask for the exact deliverables: drawings, calculations, stability notes, and any certificate that is promised.

Approvals, certificates and the paper trail

In Chennai, the approval route depends on where the plot sits. CMDA is the planning authority for the metropolitan area. The building licence comes from the Greater Chennai Corporation inside city limits, and from the relevant municipality or town panchayat outside it. For some places near the airport side, AAI height clearance can also matter. Anna Nagar itself usually does not create the same access problem as the older core city, but the paperwork still has to be right.

For a normal project, the documents we expect to see or prepare include patta, encumbrance certificate, FMB sketch, approved architectural drawings, structural stability certificate and drainage details. The exact path depends on the building type and the authority. We do not publish a universal setback or FSI number because those change with plot size, road width, height and zone. That check belongs to the specific plot, not a website page.

How we work on your plot

We keep the technical work in-house. Our civil engineers, structural engineer and architect coordinate the design, and a site engineer is on site every working day once work starts. If you cannot visit often, we send weekly photo updates on WhatsApp. Mr. D. Salamon Ashok Rajan reviews the project personally, and the contract includes milestone-linked payments with a detailed BOQ before signing.

If your building in Anna Nagar needs an inspection, redesign or stability check, call us on +91 97107 13838 or write to info@shalomconstruction.com. If you want a site visit, use our contact page; if the job is a full house or redevelopment, our residential construction page gives you the wider picture.

Frequently Asked Questions

We get called when a crack has become a worry or a plan has become serious. That is usually the right time. Earlier is better, but even late-stage projects can still be sorted if the facts are handled properly.
