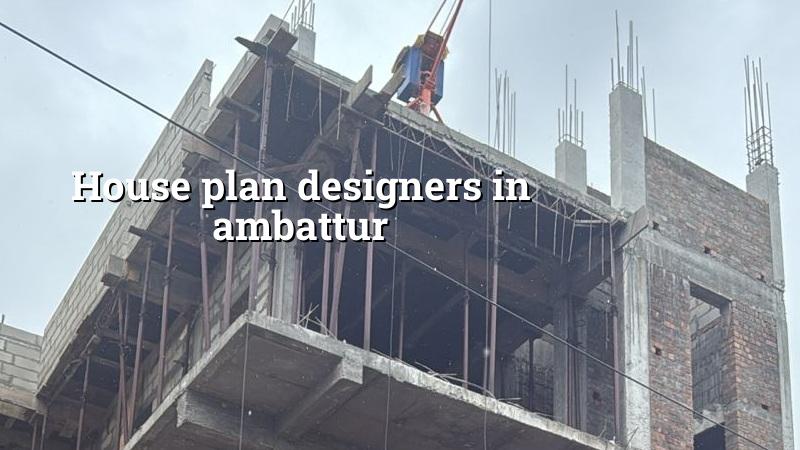

House Plan Designers in Ambattur

House plan designers in Ambattur are usually hired at the point where the plot is fixed, the family has a room count in mind, and the first sketch has to stop being guesswork. If the plan is wrong, the rest of the project keeps paying for it.

We design houses that can be built on real Chennai plots, not only on paper. That means working through room sizes, stair position, ventilation, parking, rainwater harvesting, and the approval path before you spend money on RCC and brickwork.

Why Ambattur changes the plan

Ambattur is not a clean-slated layout town. It has the industrial estate, dense residential streets, a mix of regular plots and awkward corners, and approach roads that can be busy with goods vehicles at the wrong hours. That affects how we place the gate, where the car parks, whether the staircase can sit at the front or needs to move inside, and how much of the plot can remain open enough for air and light.

On some streets the bigger issue is not the plot shape but the site access. A concrete mixer, a sand lorry and a shuttering load do not behave the same on a broad road and a narrow lane. In a crowded pocket, we plan the work in smaller deliveries, keep stacking space honest, and avoid a drawing that only works if the contractor has extra land next door.

Ambattur also sits inside the Chennai approval system, so the licence route depends on the exact location of your site. If the plot is within Greater Chennai Corporation limits, the building licence comes through the Corporation. If it falls outside that, the municipality or town panchayat handles it. That sounds like paperwork, but it changes the drawing set, the submission sequence, and the time you lose if the documents are incomplete.

What a usable house plan must solve

A plan is not just room count. It is the way your family will move through the house for the next twenty years. We start by fixing the hard points: setbacks that suit the plot, stair width that works in practice, kitchen location, wash areas, bedroom privacy, and where the service lines can run without ugly bends. If you have elders at home, we think about the floor level and the stair climb early, not after the floor plan is frozen.

Design for buildability

Many sketches look neat until the contractor has to mark them on site. A bedroom can become too narrow after wall thickness is added. A car porch can shrink once column positions are fixed. A passage can eat the usable area if the circulation is not tested against actual furniture sizes. We check the plan against construction reality: RCC column positions, beam depth, door swings, and where plumbing stacks can pass without cutting through main rooms.

For Chennai homes, we also keep IS 456:2000, IS 1893:2016, IS 875 and NBC 2016 in the background while planning the structure. The final structural design depends on the soil report, because what works on firm ground is not what we would choose if the bore log shows soft layers. If the soil is weak, raft or pile solutions may make more sense. If it is firm, isolated or strip footings may be enough. The test cost is small beside the cost of changing the foundation later.

1. Brief and plot study — we collect your room needs, budget band and plot details, then check the orientation, road side, access and likely approval route within a few days.
2. Concept plan — we place the rooms, stair and parking, then review the first layout with you so the mistakes are caught before the structural work starts.
3. Working drawings — once the concept is accepted, we prepare the dimensioned plan, elevations, section, plumbing intent and structural coordination set.
4. Submission and revisions — we make the changes needed for approval or site reality, then finalise the drawing set for construction and contract use.

How to check a good designer before you sign

Most people ask for a nice elevation first. That is understandable, but it is not the first thing you should judge. Ask for the documents, the calculation basis and the contract terms. A real design office can explain why a wall moved, why a staircase changed shape, and how the plan will hold up when the contractor starts measuring. If the answers are vague, the drawing will usually be vague too.

• Ask for a dimensioned floor plan, not only a sketch image.
• Check whether the plan shows column positions and staircase placement.
• See if the designer explains ventilation, parking and utility space.
• Ask what revisions are included before the drawing is frozen.
• Confirm who will coordinate structure, plumbing and electrical clearances.
• Request the approval set and the final issue drawing in writing.

What you receive and where people lose money

The right plan saves money in places people do not notice at first. A compact staircase saves slab area. A sensible column grid reduces beam problems. A proper toilet stack prevents long plumbing bends that later leak through ceilings. On the other hand, the wrong savings are obvious on site: too many internal walls, too many shape changes, or a front elevation that forces costly extra RCC work without improving the house.

For a house plan, the common mistake is to chase the look of the front elevation and ignore the interior sequence. Another one is to overpack the ground floor and hope the first floor will somehow work later. In reality, the plan should already know whether you may add a floor later, because the stair, foundation and column design have to be ready for that decision from day one.

Approval and site reality in Chennai

In the Chennai metropolitan area, the plan has to work with the authority that actually sees your file. CMDA is the planning authority, but the building licence comes from the body that governs the plot location. That can be Greater Chennai Corporation, a municipality, a town panchayat, or in some places a cantonment board. Near the airport side, height clearance from AAI can also come into the picture. These are not optional details. They decide whether your drawing set can move or sits in a queue.

The basic papers usually include patta, encumbrance certificate, FMB sketch, approved architectural drawings, structural stability certificate and drainage details. We do not treat these as a clerical job. Missing one document can hold the file, and a wrong drawing can make you rework the whole set. That is why we confirm the plot facts before talking about construction start dates.

How we work

We keep the design and the engineering in-house, so the person drawing the plan is not guessing what the structural engineer will later reject. Our site engineer tracks the build every working day, and Mr. D. Salamon Ashok Rajan reviews the technical side as a civil engineer himself. If you cannot visit often, we send weekly photo updates on WhatsApp. For a house plan discussion in Ambattur, call +91 97107 13838 or write to info@shalomconstruction.com. If you want to see how we build, the residential page shows the kind of work we take up, and architectural covers the design side.

Frequently Asked Questions

If you are at the stage where the site is fixed but the plan still feels uncertain, that is the right time to sit with an engineer and a designer together. A good drawing saves more money than a bargain quote ever does.
