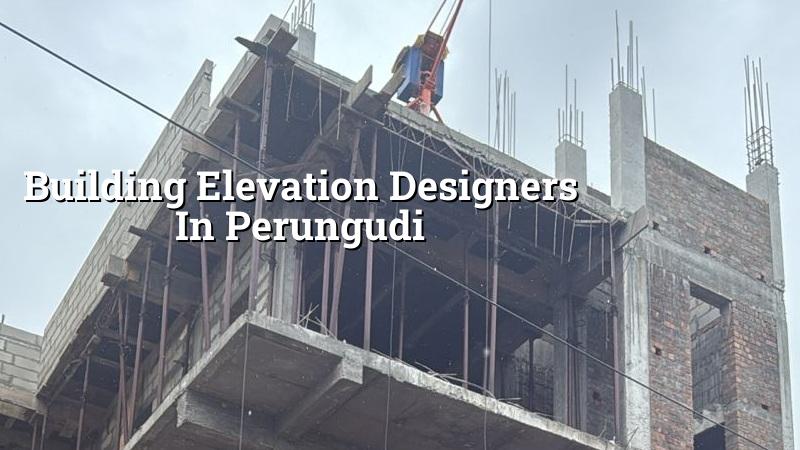

Building Elevation Designers in Perungudi

If you need building elevation designers in Perungudi, you probably already have a plot, a rough budget, and one question: what will the front of the building actually look like once it is built? That is the right place to start.

We handle elevation design as part of a real building process, not as a pretty image alone. The drawing has to work with structure, rainwater flow, balcony projections, sun, parking access and the approvals side of the project, or it becomes decorative noise.

What Perungudi Changes

Perungudi sits in the OMR belt beside marshland in parts, so the first mistake people make is treating the elevation as a pure façade exercise. On a site that may hold water or sit low compared with the road, the plinth line, compound wall height, entrance ramp and external levels all affect the finished look. If those are left until the end, the elevation can look good on paper and awkward on site.

We also see a lot of mixed building types here. You have apartments, compact independent houses, villas and commercial buildings tied to the IT corridor. A design that works for a narrow residential plot off a side street will not suit a larger OMR-facing property, because the viewing distance, traffic noise, parking and sun direction are different. That changes the massing, window size and where the main visual focus should sit.

Another local reality is site access. Some Perungudi plots give you enough room to stage shuttering, steel and scaffolding. Others are tight, with neighbours close on two sides and delivery windows that have to be planned. An elevation with deep recesses, heavy cladding or complicated projections can become slow and expensive if the site cannot support that kind of work.

What We Design and Why It Matters

Elevation work is more than drawing a nice front face. We think through the structure, the building lines, the material junctions, drainage fall, waterproofing edges and how the façade will age after the first few monsoons. A slab edge that is not detailed properly stains early. A projection without proper slope collects water. A sunshade that looks neat in a rendering can become a cracking point if it is too thin or poorly supported.

Front look, side look and real buildability

For a residential project in Perungudi, we usually begin with the front elevation, then check the side and rear faces because that is where services, staircases, utility lines and compound edge conditions show up. A good design keeps the main visual lines clean while hiding the practical clutter. It should also respect the structural grid, because if the beam layout is ignored, the contractor ends up forcing changes later.

We work to Indian standards that matter to the whole building, not just the drawing board. RCC design follows IS 456:2000, loads are considered under IS 875, seismic detailing follows IS 1893:2016 and overall coordination sits within NBC 2016. Chennai is in Seismic Zone III, so elevation features cannot be treated as loose decorative parts. They need proper anchorage and a build-up that the structure can safely carry.

1. Site review — We study the plot, road edge, orientation and practical access in the first meeting, usually within a few days of contact.
2. Concept sketch — We prepare the first elevation idea, with massing and proportion, so you can react to the overall look before detail work starts.
3. Structural check — The architect and structural engineer check whether the proposed projections, canopies and balcony lines can be built safely.
4. Revision and BOQ — We refine the drawing, note the materials and coordinate it with the BOQ before the contract is signed.
5. Construction support — Our site engineer checks that the built façade matches the approved drawing and the small site changes do not ruin the face of the building.

How to Judge a Good Elevation Design

If you are comparing building elevation designers in Perungudi, the real test is not who shows the most dramatic 3D image. It is whether the design survives a site visit, a budget review and the structural engineer's questions. A clean elevation should still make sense when the cladding is reduced, the budget changes or the owner asks for a second car park.

• Ask for the plan, front elevation and at least one side view together, not as separate pretty pictures.
• Check whether the proposal shows roof edges, rainwater discharge points and terrace access clearly.
• Ask what changes if the structure needs a deeper beam or a different column line.
• See whether the material list is practical for Chennai weather, not just attractive in a render.
• Confirm how many revisions are included before the design is frozen.
• Ask how the elevation changes if the plot faces east, west, north or south.

Approvals, Cost and the Parts You Should Not Skip

In the Chennai Metropolitan Area, CMDA matters, and the body that issues the building licence depends on where the plot sits. Perungudi is in the broader OMR side of the city, so the approval path may involve the local urban body and the usual document set: patta, encumbrance certificate, FMB sketch, approved architectural drawings, structural stability certificate and drainage details. If the plot is close to an airport influence area, height clearance can also enter the conversation. We never assume that part.

For pricing, elevation design itself is usually tied to the overall architectural scope and the level of finish you want, while the actual building cost depends on structure, floors, span, access and materials. For the construction side, standard residential work in Chennai generally sits around ₹1,900 to ₹2,300 per sq ft, mid-premium at ₹2,300 to ₹2,800, and premium at ₹2,800 to ₹3,500+ per sq ft. The BOQ settles the real figure before any contract. On elevation-heavy homes, the material choice can move the cost more than people expect.

How We Work on a Perungudi Plot

We do the architectural and structural work in-house, with a site engineer on site every working day and weekly WhatsApp photo updates for clients who cannot visit. That matters on elevation jobs because the drawing only stays honest if someone checks the shuttering, slab edge and finishing lines while the work is going on. Mr. D. Salamon Ashok Rajan reviews projects personally, and we keep the BOQ in front of the design, not after it. If you want to discuss a plot in Perungudi, call +91 97107 13838 or write to info@shalomconstruction.com.

Frequently Asked Questions

Good elevation work looks calm because someone handled the difficult parts early. If the structure, drainage and proportions are right, the final face of the building does not need tricks.
