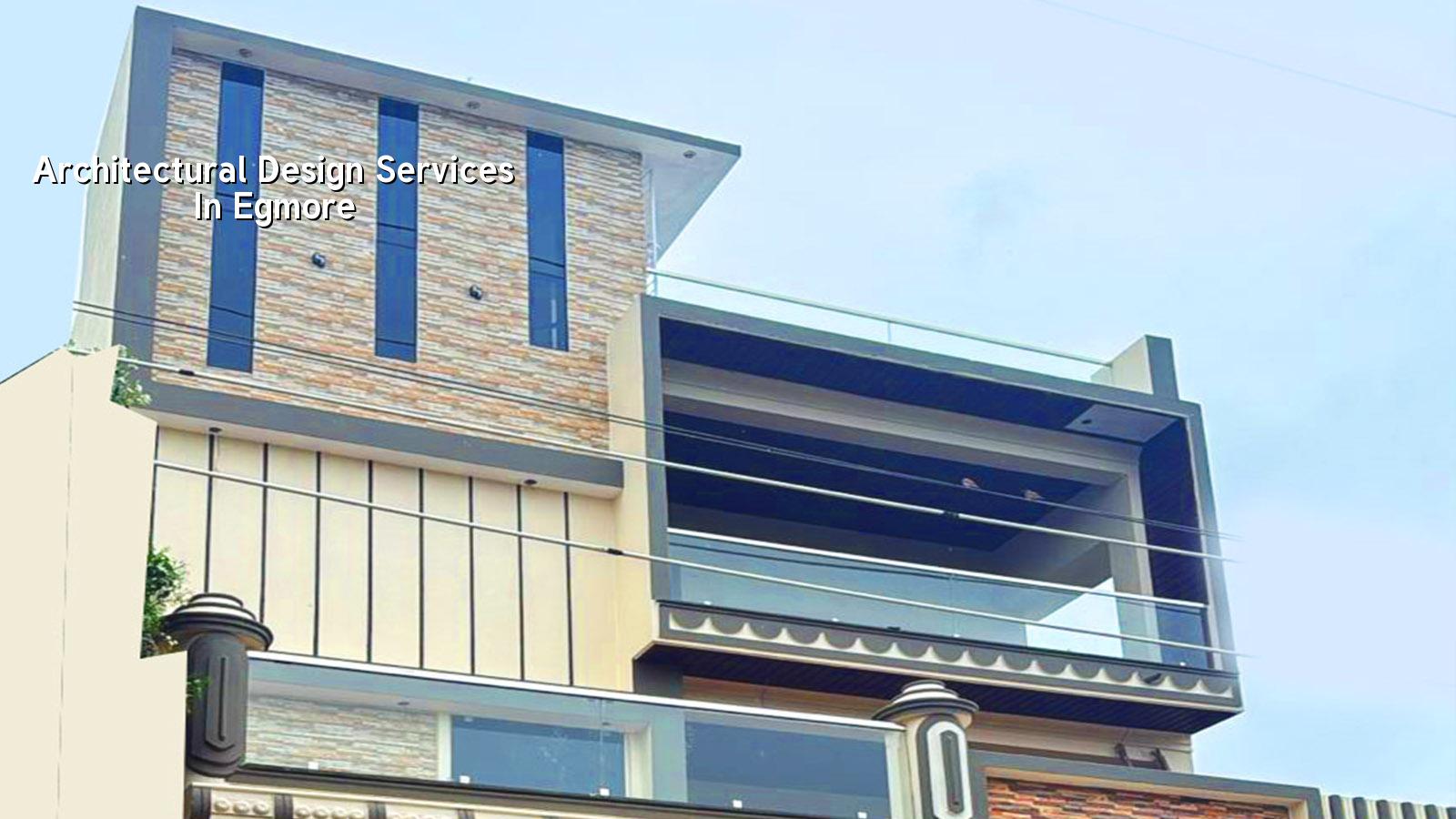

Architectural Design Services in Egmore

Architectural design services in Egmore usually start when you have an old house, a tight plot, or a redevelopment idea and you need drawings that the authority and the contractor can both work from. In Egmore, pretty sketches are not enough.

We prepare the design around structure, approvals, light, ventilation, and how the site will actually be built on a busy central Chennai street. That means plans you can use for CMDA review, a clear drawing set, and enough detail to keep the contractor from guessing on site.

Why Egmore needs a different design approach

Egmore is not a blank layout on the city edge. It is an older central district with railway traffic, narrow approach streets in many pockets, mixed building ages, and plots where the neighbour wall is often close enough to touch. That changes the design from the first day. You cannot decide access, shutter opening, staircase position, material storage, or demolition method after the drawings are frozen.

We see two common situations here. One is an old independent house that needs replacement with a ground-plus-one or ground-plus-two home. The other is a property where the owner wants to keep part of the structure and rebuild the rest. Both need measured drawings of the existing site before anyone starts drawing a new elevation. Without that, the plan looks good on paper and fails on the plot.

In a locality like this, the real question is often not “What style do you like?” It is “How will people and material move in and out, where will the staircase sit, and how much of the front can stay open without making the house dark?” That is the part that decides whether the design works.

What we actually design

For architectural design services, we do not hand over only a front elevation and a floor plan. We build the set around how the house or building will be approved and built. Our in-house architect works with the civil and structural team, so the plan, column position, beam layout, and service routes are checked together instead of being corrected later by the site team.

Drawing set and coordination

A proper drawing set for a Chennai project usually has the site measure sketch, room layout, furniture placement where needed, elevation concepts, section cuts, staircase details, toilet and kitchen layouts, and coordination notes for plumbing and electrical routes. For larger homes or commercial units, we also look at terrace use, rainwater harvesting placement, and the practical path for tanks, shafts, and service lines. If the structure is not coordinated with the plan, you get a room with a beam exactly where the wardrobe was meant to go. That is the kind of mistake that costs real money later.

We design to Indian standards. The structural side follows IS 456:2000 for RCC, IS 1893:2016 for seismic design, IS 875 for loads, and NBC 2016 for planning and building provisions. For the site, soil investigation is part of the foundation decision, because the design cannot honestly be fixed without knowing what is under the plot.

1. Site visit and measurement — we measure the existing plot or building, note access, boundary condition, level changes, and nearby constraints. This usually takes one visit, sometimes two if the site is occupied.
2. Brief and space planning — we ask how you live or work, how many rooms you need, parking needs, future expansion, and whether the project is new build or redevelopment. This stage takes a few days, not hours.
3. Concept drawings — we prepare the first plan and elevation options, then check circulation, light, stair position, and room sizes before going further.
4. Approval and coordination set — we finalise the drawings needed for the local body process, with structural coordination, drainage details, and the documents required for the file.
5. Working drawings — once the plan is accepted, we issue drawings the site team can build from. This is where the house stops being an idea and becomes a project.

How approvals work here

Egmore sits inside the Chennai Metropolitan Area, so CMDA rules matter. The building licence is issued by the local body that has jurisdiction over the plot, and that depends on the exact location. In city-limit areas it can be Greater Chennai Corporation; outside that, it may be a municipality or town panchayat. If the plot is in a special jurisdiction, the process changes again. That is why we never promise a one-size-fits-all approval timeline without checking the site first.

• Patta and encumbrance certificate for ownership clarity
• FMB sketch or survey sketch so the site boundaries are not assumed
• Architectural drawings prepared for the specific plot
• Structural stability certificate where the file needs it
• Drainage and rainwater harvesting details, because Tamil Nadu has required RWH since 2003
• Soil test output before the foundation design is fixed

Near the airport side of Chennai, AAI height clearance can also come into the file. Egmore itself is not an airport-zone issue, but many owners ask about this because they are comparing central and south Chennai sites. The answer is simple: what applies depends on the plot, not the assumption. We check the authority route before the contract moves ahead, so the design is not redrawn in the middle of approval.

What to verify before you choose a designer

If you are comparing firms for a home or redevelopment project, ask for the actual drawing list and not just a promise. A fair design contract tells you what you will receive, how many revisions are included, and who signs off on the structural part. You should also see whether the firm handles the approval drawings itself or passes them around between outside people. That handoff is where many projects lose time.

Do not accept a vague agreement that says “complete design” without naming the deliverables. If a service sounds too broad, the site usually ends up with too many assumptions. Ask these questions and judge the answers plainly:

• Will I get measured drawings before the concept starts?
• Who prepares the structural coordination, and is it in-house?
• How many plan revisions are included before finalising?
• What exactly is included in the approval set?
• Will I get drawings that the contractor can actually build from?
• What happens if the soil report changes the foundation idea?

A good design team should not avoid the last question. If the bore results show soft layers, the plan may need to work with a raft or a pile foundation with tie beams. If the soil is firm, isolated or strip footings may be enough. The point is not to guess. The point is to keep the architecture tied to real ground conditions. The soil test is cheap compared with the cost of correcting a wrong foundation decision.

Costs, revisions, and the honest trade-off

People usually want one of two things. Either they want a design that looks distinct, or they want a design that stays within budget and can be built without constant site changes. You can have both, but only if the brief is disciplined. The trade-off is simple: more custom features, more time in drawing and coordination; more speed, fewer changes later.

The wrong saving is to skip the coordination stage and ask the contractor to “adjust on site.” That works only until the staircase lands badly, a room becomes narrow, or the plumbing line fights the beam. The better place to save is on unnecessary flourish that adds cost without adding use. A smart plan keeps the shape clean and puts money into space, structure, and finish where it matters.

If you are budgeting the full build, our residential construction rates in Chennai usually move within the published band of ₹1,900 to ₹2,300 per sq ft for standard finishes, ₹2,300 to ₹2,800 for mid-premium, and ₹2,800 to ₹3,500+ for premium work. The design itself does not fix the final rate. Soil, foundation type, number of floors, span, finish level, and site access all move the number, and the detailed BOQ settles it before any contract is signed.

How we work

We handle the architectural work in-house with our civil engineers, structural engineer, and architect sitting on the same project, so the plan is not separated from the structure. A site engineer visits every working day once execution starts, and if you cannot come often, we send weekly photo updates on WhatsApp. Mr. D. Salamon Ashok Rajan personally reviews projects, which helps when a design decision affects cost or buildability. If you want to start with a measured site visit in Egmore, call us on +91 97107 13838 or mail info@shalomconstruction.com.

Frequently Asked Questions

If you are planning a new build or a careful replacement of an older property, we can start with the measurements and the first plan. The cleanest projects in Chennai are the ones where the drawings were honest from day one.
